Structural Features:

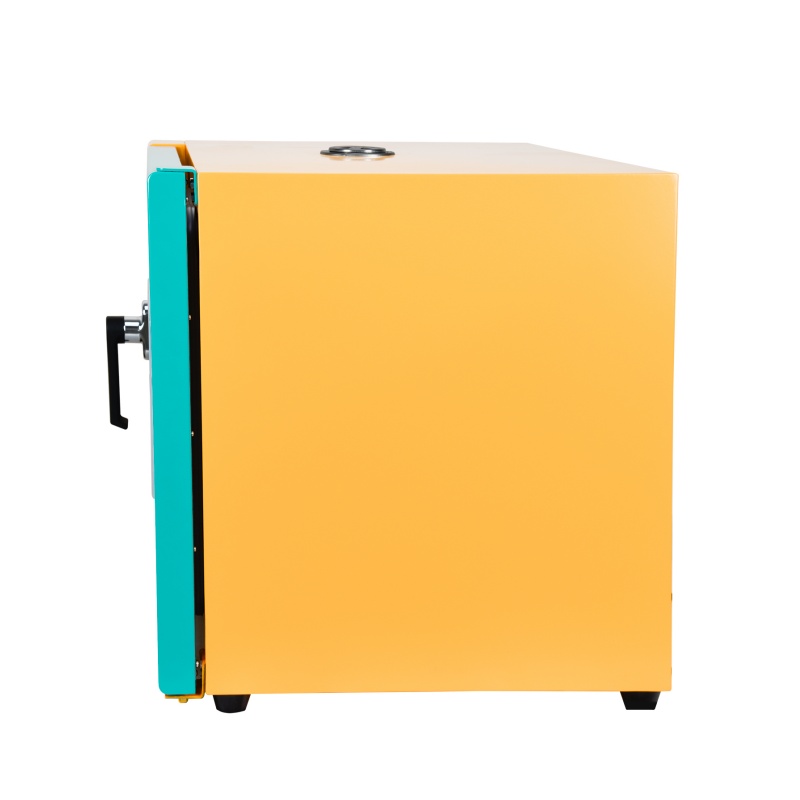

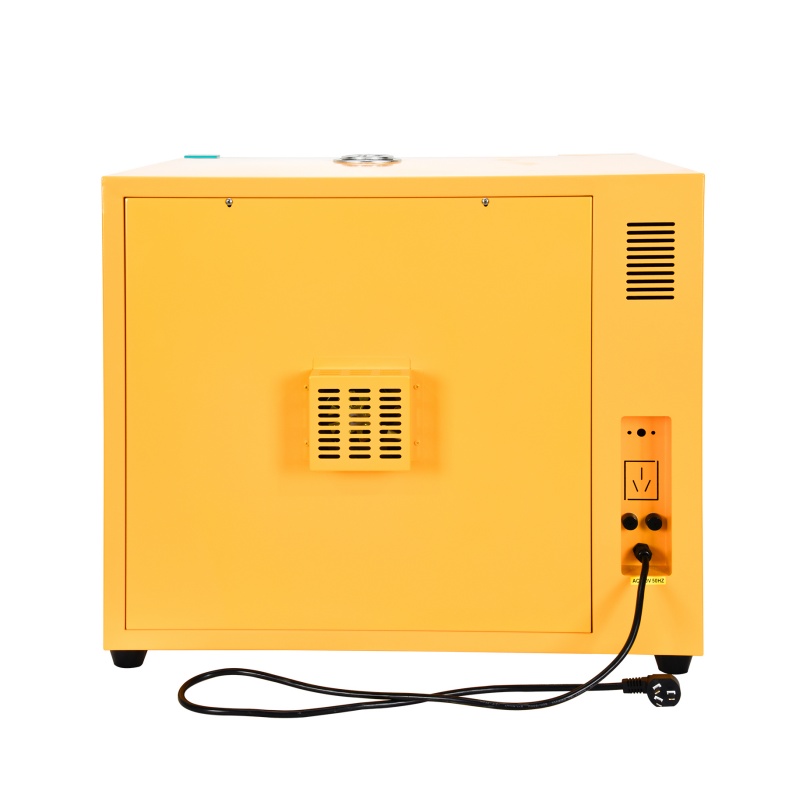

Outer Casing： Constructed from cold-rolled steel plate substrate with electrostatic baking paint treatment, forming a dense protective layer for high hardness, corrosion resistance, and durability. Features anti-pinch rounded edges for operational safety.

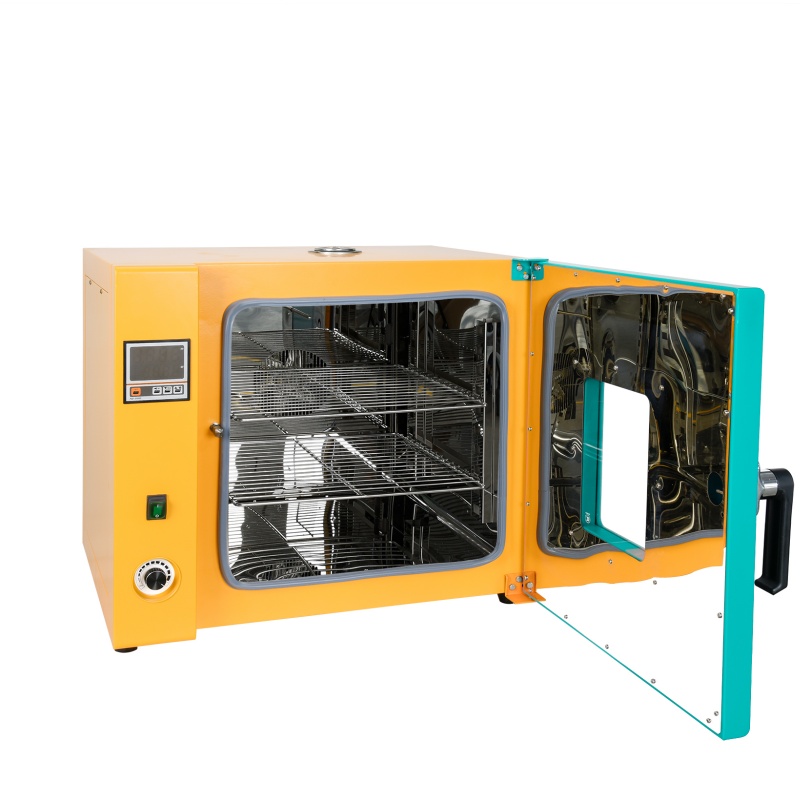

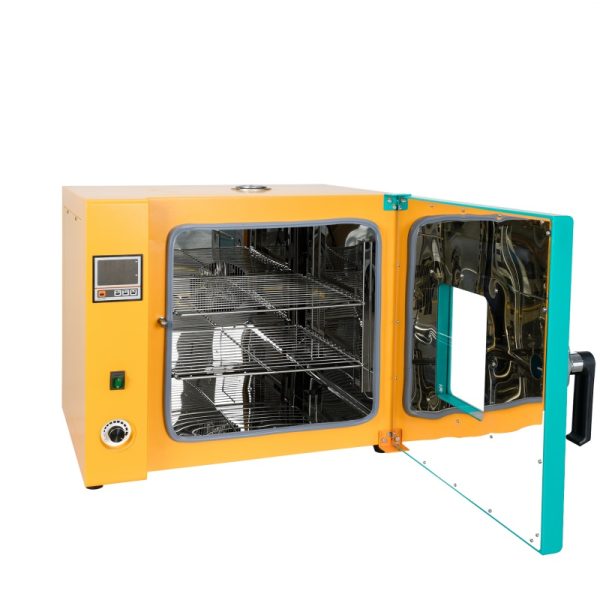

Working Chamber： Made of mirror-polished stainless steel with smooth rounded corners. Quick-detachable shelf brackets allow flexible height adjustment and easy cleaning.
Insulation Layer： Insulation protection system between the casing and working chamber ensures thermal retention, guaranteeing temperature stability and minimal ambient impact.
Sealing Technology： High-density synthetic heat-resistant silicone sealing strips prevent heat loss and support long-term high-temperature operation.

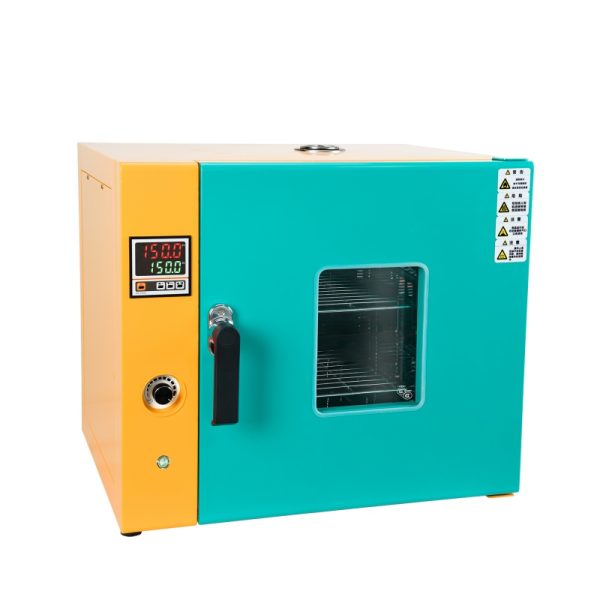

Observation Window： Double-layer tempered glass observation window enables clear visibility of heated items while maintaining thermal insulation.
Air Flow System： Forced convection ventilation structure enhances temperature response speed, improves uniformity, and reduces fluctuations.
Control Panel： Microcomputer intelligent digital temperature controller with high precision, no overshoot, multi-parameter display, temperature calibration, and timer functions.
Temperature Control： Constant-temperature system with high-sensitivity sensors ensures operational stability.
Fan System： Equipped with an adjustable fan speed knob for flexible air volume control.
Optional Configurations： Micro-printer or RS485 interface: For data printing/computer connectivity, enabling remote control and alarms.
Programmable multi-segment LCD temperature controller.
| Model | TMJ-50L-AB | TMJ-250L-AB | TMJ-600L-AB | TMJ-1000L-AB |
