Specifications:
Model: JM-H-80、JM-H-120、JM-H-220、JM-H-330
Brand: Junmu
Product Description:

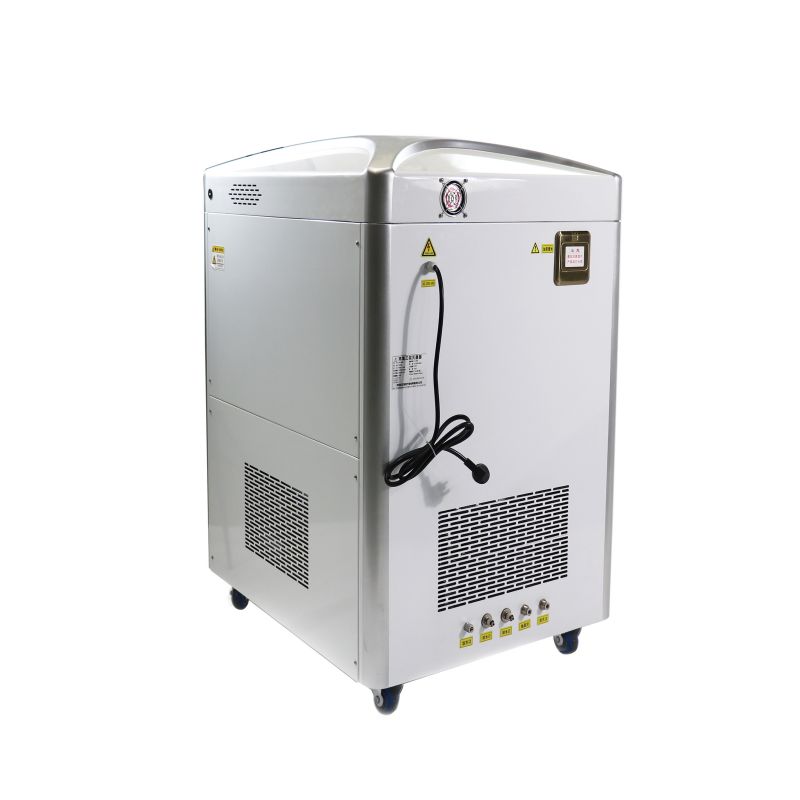

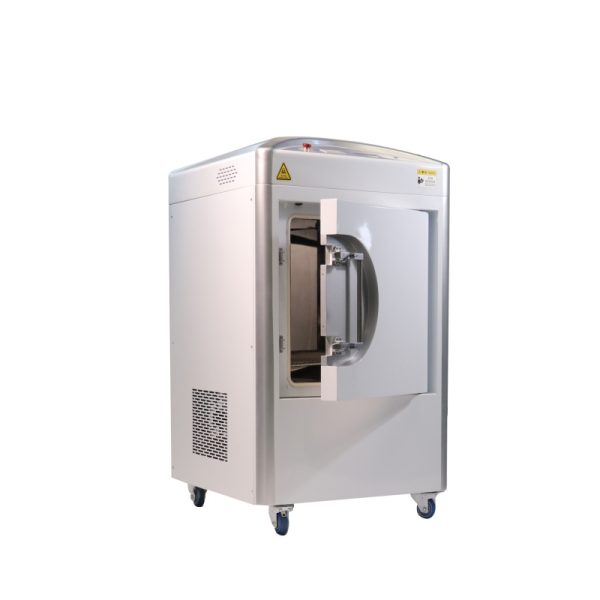

Ethylene Oxide Sterilizer (a Sterilization Device Suitable for Heat- and Moisture-Sensitive Items) is a device that enables reliable sterilization of various medical instruments and supplies. Its working principle relies on the non-specific alkylation reaction of ethylene oxide with proteins and genetic materials such as DNA/RNA in microorganisms—this reaction causes denaturation of proteins and genetic materials, ultimately leading to the death of microorganisms due to blocked metabolic processes, thereby achieving thorough sterilization.
Product Features:
1.Sterilization chamber: SS304 stainless steel
2.Vacuum system:High-performance, low-noise, oil-free vacuum pump
3.Built-in printer:Thermal printer

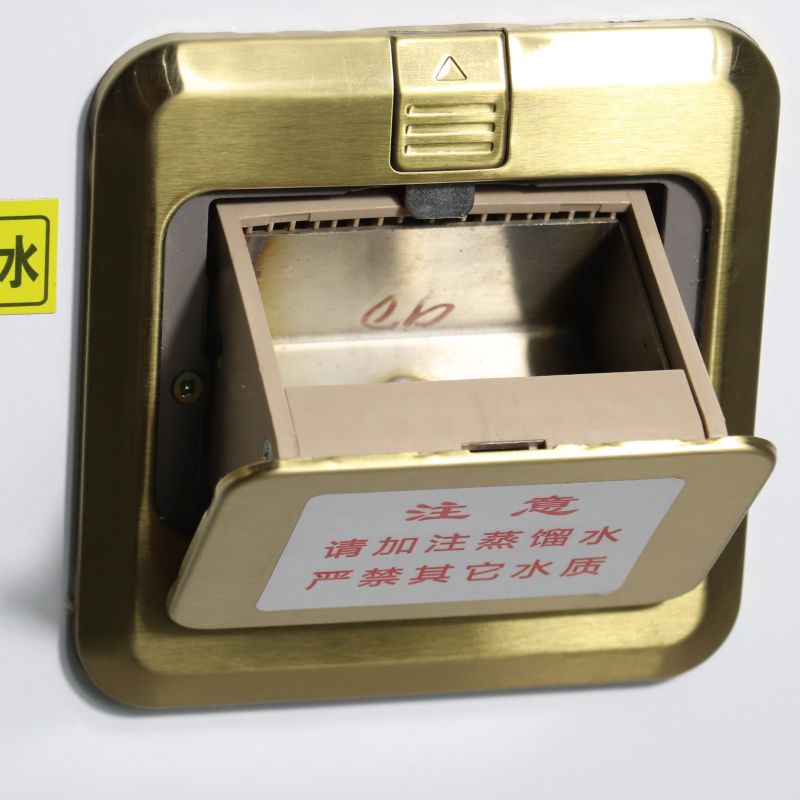

4.Humidity system:Use saturated steam to humidify the sterilization chamber, and the air humidity is more uniform
5.Timing system: EO gas diffusion time and residual EO aeration timing settable
6.Pre-set: Standard Sterilization Mode and Residual Washing
Technical Date:
| Liner (D*W*H) mm | Outside(L*W*H) mm | Volume | Power | Weight | |
| JM-H80 | 585×275×422 | 795×615×1140 | 67L | 2.6KVA | 124KG |
| JM-H120 | 585×375×472 | 795×615×1140 | 103L | 3.0KVA | 147KG |
| JM-H220 | 705×505×552 | 968×800×1240 | 196L | 3.3KVA | 207KG |
| JM-H330 | 760×575×682 | 968×800×1380 | 294L | 3.6KVA | 227KG |
|
product name
|
Low Temperature Ethylene Oxide Sterilizer
|
|
Product form
|
vertical
|
|
Heating mode
|
electrical heating
|
|
Source
|
AC.220V±22V,frequency 50Hz±1Hz
|
|
Temperature display
|
Liquid crystal resistance touch screen
|
|
Sterilizing room material
|
304 anti-corrosion stainless steel
|
|
Outer box material
|
Carbon steel (thickness 1.8mm) baking powder
|
|
Sterilization temperature
|
50℃±5℃
|
|
Working pressure
|
-60kpa
|
|
Maximum anti-pressure value
|
-80kpa
|
|
Humidity during sterilization
|
45%-75%
|
|
Selected gas
|
pure ethylene oxide gas
|
|
Sterilization time
|
0-99 hours adjustable
|
|
Vacuum speed
|
15 minutes to -60kpa
|
|
Printer
|
Use a micro printer to print out the data every minute during the entire
sterilization process, which can be stored permanently. |
|
Sealed door
|
Using 5052 high-quality aviation aluminum, thickness 215mm,pressure
resistance 200Kpa. |
|
Heating system
|
Use explosion-proof electric heating device
|
|
Alarm system
|
There are high temperature alarm system, ultra-low pressure alarm system
|
|
Printer
|
Use a micro printer to print out the data every minute during the entire sterilization process, which can be stored permanently.
|
|||||
|
Sealed door
|
Using 5052 high-quality aviation aluminum, thickness <15mm,pressure resistance 200Kpa.
|
|||||
|
Heating system
|
Use explosion-proof electric heating device
|
|||||
|
Alarm system
|
There are high temperature alarm system,ultra-low pressure alarm system
|
|||||
Applications:

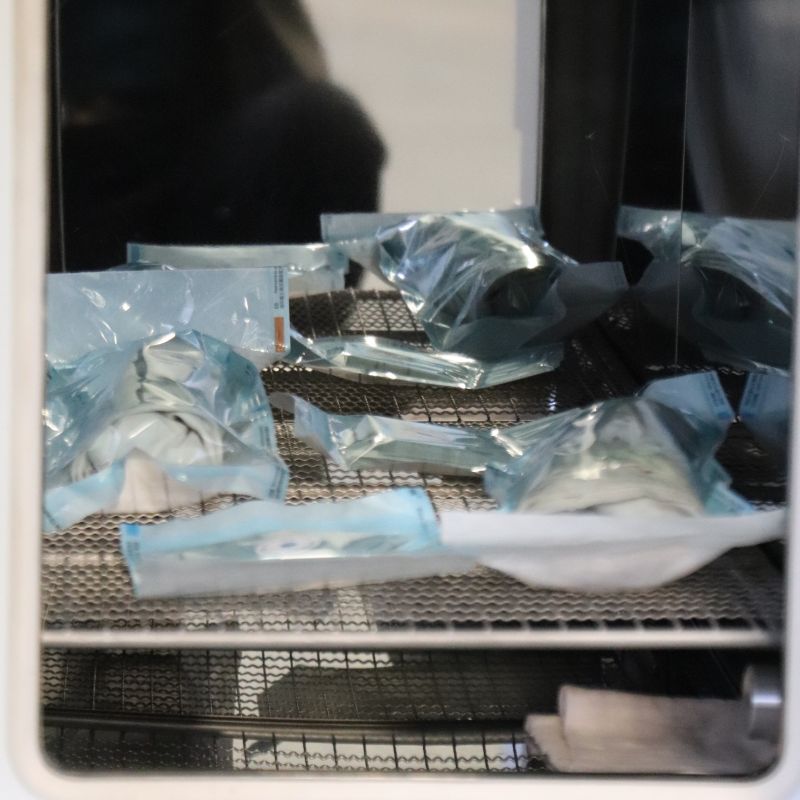

The Junmu Medical Ethylene Oxide Sterilizer is suitable for sterilizing a wide range of temperature- and moisture-sensitive medical devices and materials, including but not limited to:
Medical Instruments: Rigid endoscopes, hose (flexible) endoscopes, ophthalmic lenses, fiber optic cables, surgical instruments, and more. These devices are often made from materials such as metal, glass, silica gel, and rubber, which may not withstand high-temperature sterilization. Ethylene oxide sterilization ensures complete sterilization without causing thermal damage.
Materials & Components: Items composed of or containing metals, glass, silica gel, rubber, and other heat-sensitive materials.
Pharmaceuticals & Biological Materials: Traditional Chinese medicine, Western pharmaceuticals, human plant-derived substances, DNA samples, and other biologically active or chemically sensitive substances. Ethylene oxide’s low-temperature process helps maintain the integrity and efficacy of such sensitive materials.
With its broad-spectrum, low-temperature, and highly effective sterilization capabilities, the Junmu Medical Ethylene Oxide Sterilizer is an ideal solution for hospitals, laboratories, pharmaceutical manufacturers, and medical device producers.
FAQ:
- What is the warranty period?– The product comes with a 1-year warranty covering parts and labor.
- Do you accept customized logo or mark on your product?– Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- What method of payment will you accept?– We accept many ways like T/T or pay pal.
- Are you a manufacturer?– Yes, we are the professional manufacturer set up in 2001, located at Zhengzhou city.
- Can we visit the factory?– Of course, we highly welcome clients come to our factory, it will be our great honor to meet you.
- How can you guarantee the quality?– 100% qualified products before delivery. The clients can inspect the product at our factory.
- When can I get the product quotation?– We will send you a product quotation within 24 hours after receiving your inquiry
