Low Temperature Plasma Hydrogen Peroxide Sterilizer(JM-DZ)

Low Temperature Plasma Hydrogen Peroxide Sterilizer (automatic medical)is a device capable of achieving high-efficiency sterilization of medical instruments. Its working principle relies on the chemical sterilization effect of hydrogen peroxide (H₂O₂) vapor combined with the physical and chemical synergistic effect of plasma, completing the sterilization process through multi-stage cooperation under low-temperature and vacuum conditions.

Applicable articles: Rigid endoscope; soft endoscope; probe; ophthalmic lens; fiber optic cable; intracranial sensor; cold therapy probe; surgical excision device; electrocautery equipment; defibrillation motor; metal; glass; silicone; rubber ETC.

Application scenario: CSSD disinfection supply center, operating room, inspection department, university laboratory and relevant testing institutions.

Category: Brand:

Specifications:

Model :JM-DZ-100 、JM-DZ-130 、JM-DZ-220
Brand :Junmu

product  description:

Product name：Low Temperature Plasma Hydrogen Peroxide Sterilizer

Low Temperature Plasma Hydrogen Peroxide Sterilizer(JM-DZ)

Product Features:

Low-Temperature & High-Efficiency Sterilization

  • Operates at 40°C-60°C, avoiding heat damage to delicate instruments and suitable for heat-sensitive materials (such as plastics, rubber, and electronic components).
  • Uses H₂O₂ plasma technology, achieving a sterilization cycle of 35-55 minutes—more efficient than ethylene oxide (EO) sterilization, which takes hours to days.

Fully Automatic & Smart Control System

  • One-touch operation with a PLC smart control system; computer program controls the entire process to reduce human operation errors, ensuring safe and user-friendly use.

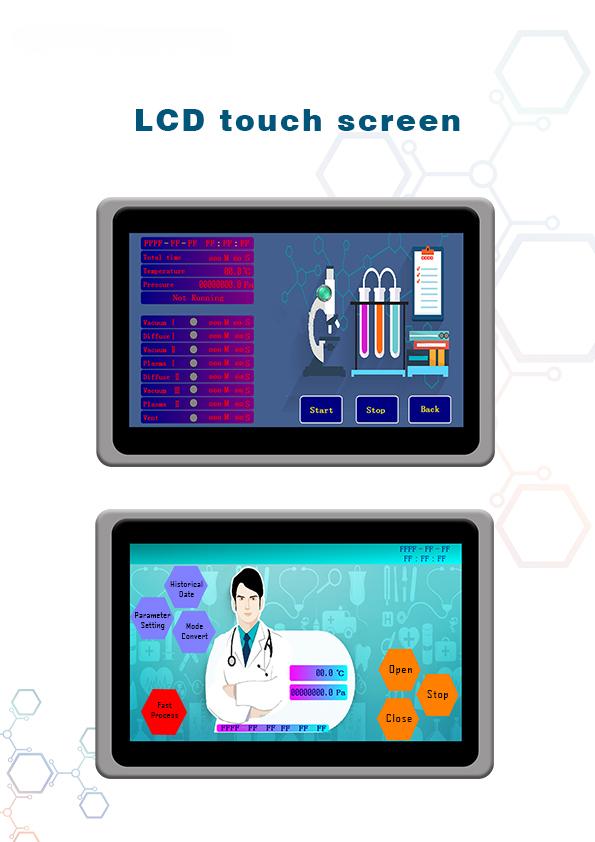

  • 7-inch color LCD screen displays real-time monitoring of sterilization status.
  • Automated door system with infrared sensor for hands-free access.

Advanced Safety & Filtration System

  • Medical-grade HEPA filtration removes residual sterilizing gas with 99.5% efficiency.
  • Overpressure & overheating protection with built-in alarms; automated pressure monitoring ensures chamber integrity.
  • Hydrogen peroxide decomposes into water and oxygen, leaving no toxic residues—safe and eco-friendly, with no need for long-term ventilation.

Large Capacity & Versatile Application

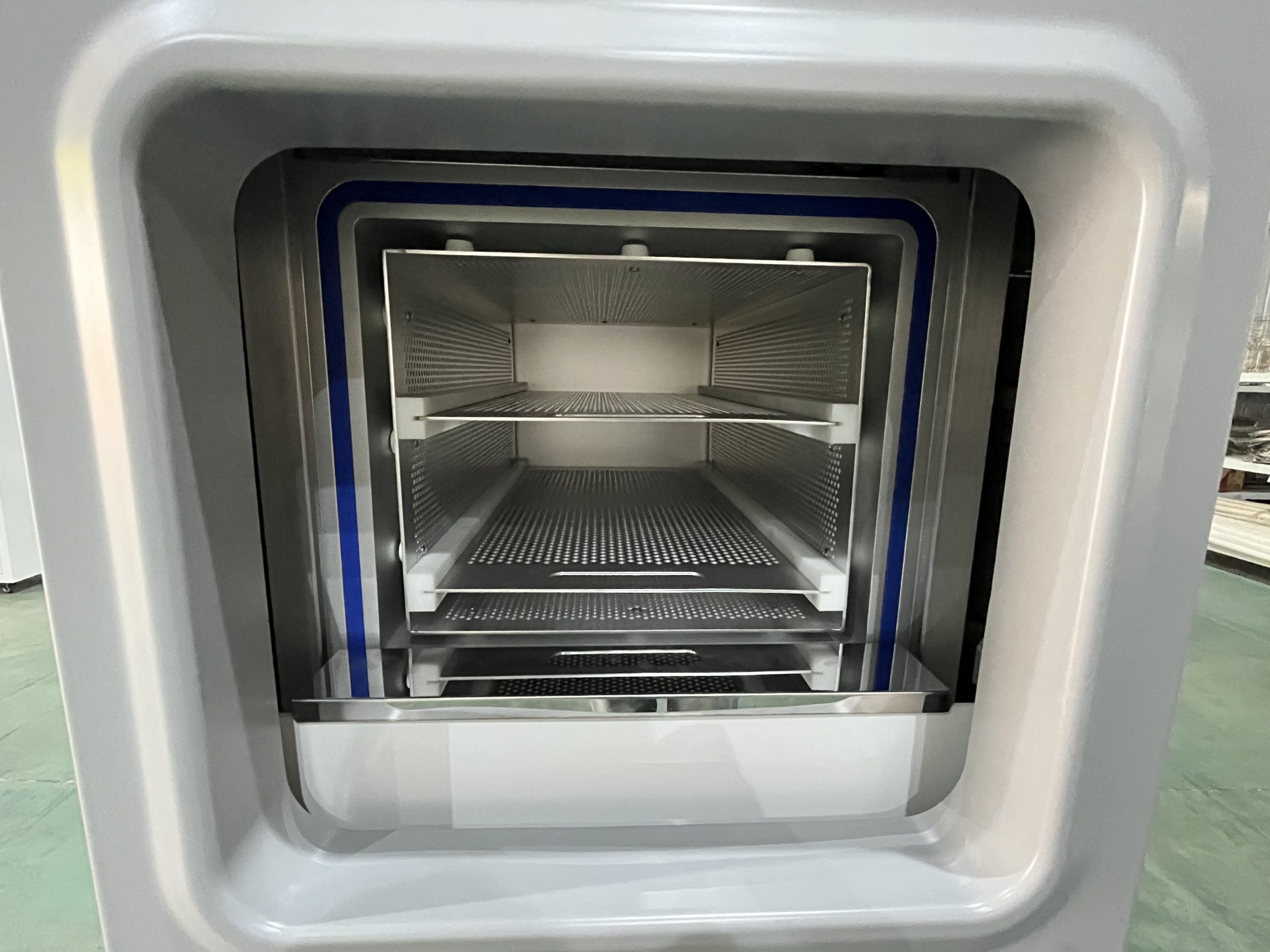

  • 108L/135L/192L sterilization chamber accommodates multiple instruments in one cycle.
  • Features strong penetration, enabling sterilization of lumens and slits of complex instruments (such as endoscopes and catheters).
  • Offers strong compatibility with materials like metal, glass, silicone, and some plastics (not suitable for cotton cloth, wood, powders, etc.).
  • Designed for surgical tools, endoscopes, dental instruments, and high-precision medical devices.
  • Ideal for hospitals, laboratories, pharmaceutical manufacturing, and veterinary clinics.

Technical Date:

Model

 Liner (D*W*H) mm Outside(L*W*H) mm Volume Power Weight
JM-DZ100 700×430×360 1105×790×1765 108L 3.5KVA 265KG
JM-DZ130 750×450×400 1105×790×1765 135L 4.2KVA 272KG
JM-DZ220 820×510×460 1105×790×1765 192L 4.8KVA 305KG

Applications:

  1. Medical Field
  • Operating room & minimally invasive surgical instruments: Laparoscopes, high-frequency electric knives, microsurgical instruments, etc.
  • Endoscopes & catheters: Gastroscopes, cystoscopes, urinary catheters, central venous catheters, etc.
  • Implants & high-value consumables: Titanium alloy orthopedic implants, pacemaker wires, silicone prostheses, etc.
  • Dental & ophthalmic instruments: Dental high-speed handpieces, implant tools, corneal contact lenses (sterilizable models), etc.
  • Emergency & anesthesiology: Laryngeal masks, endotracheal tubes, defibrillator electrodes, etc.
  1. Laboratory & Other Fields
  • Biological laboratories: Culture dishes, pipette tips, PCR plates (applicable models), tools in biosafety cabinets, etc.
  • Bioengineering: Sterile filling machine nozzles/pipes, freeze dryer accessories, bioreactor components, etc.
  1. Special Industry Applications
  • Veterinary & animal experiments: Veterinary endoscopes, surgical instruments for experimental animals, etc.
  • Military & field medical: Field surgical kits, aerospace medical equipment, etc.
  • Beauty & tattoo industry: Micro-plastic surgery instruments (injection needles, etc.), tattoo machine accessories, etc.
