Specifications:
Model: JM-MJPS-50L-AC、JM-MJPS-100L-AC、JM-MJPS-180L-AC、JM-MJPS-280L-AC、JM-MJPS-380L-AC、JM-MJPS-500L-AC、JM-MJPS-800L-AC、JM-MJPS-1000L-AC
Brand: Junmu
Product Description:
Structural Features:
Outer Casing： Constructed from cold-rolled steel plate substrate with electrostatic baking paint treatment, forming a dense protective layer for high hardness, robustness, and exceptional anti-corrosion capability. Features anti-pinch rounded edges for operational safety and durability
Working Chamber： Equipped with ultraviolet disinfection lamps. Made of mirror-polished stainless steel with smooth rounded corners. Quickly detachable shelf brackets allow flexible adjustment and easy cleaning of the chamber
Insulation Layer： Insulation protection system between the outer casing and working chamber ensures thermal retention, guaranteeing temperature stability while minimizing ambient impact
Sealing Technology： High-density synthetic heat-resistant silicone sealing strips prevent heat loss and support long-term high-temperature operation

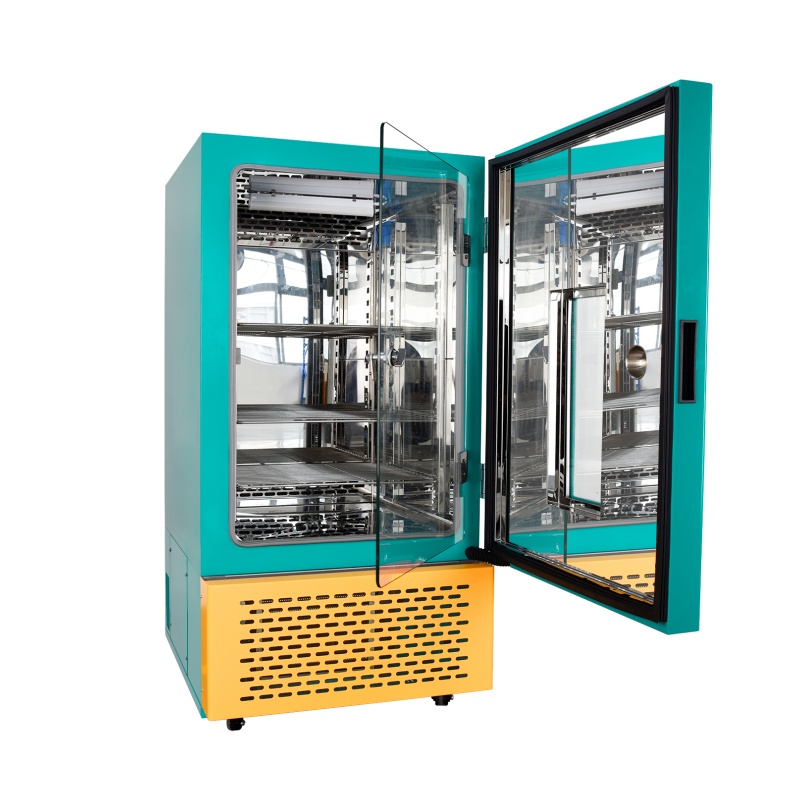

Observation Window： Double-door design with tempered glass observation panes. Opening the outer door allows direct viewing of the chamber without affecting internal temperature. Note: 800L/1000L models feature a double-door design (outer door without observation window)
Temperature Control： Automatic cold/heat control system with high-sensitivity sensors ensures operational stability
Air Flow System： Forced convection ventilation structure enhances temperature response speed, improves uniformity, and reduces fluctuations
Control Panel： Microcomputer intelligent LCD display with menu operation, temperature calibration, and timer functions. High precision with no overshoot
Safety & Connectivity： Equipped with leakage protectors and RS485 communication interface for computer connectivity, enabling data display, printing, storage, and playback of experimental records
Humidification System：Internal humidity control technology with 316 stainless steel heating pipes generating steam for humidity regulation. Delivers minimal humidity fluctuation and high uniformity. External 25L water tank supports 15–20 days of continuous operation without refilling
Technical Date:
| Model | MJPS-50L-AC | MJPS-100L-AC | MJPS-180L-AC | MJPS-280L-AC | MJPS-380L-AC | MJPS-500L-AC | MJPS-800L-AC | MJPS-1000L-AC | |
| Door | Single door | Double door | |||||||
| Power Supply Voltage | AC 220V,50HZ | ||||||||
| Temperature Fluctuation | Heating±0.5℃；Refrigeration±1℃ | ||||||||
| Temperature Uniformity | ±1℃ | ||||||||
| Temperature Resolution | 0.1℃ | ||||||||
| Temperature Range | 0～60℃ | ||||||||
| Timer Range | 1～9999min | ||||||||
| Humidity control range | 30～95%RH | ||||||||
| Humidity fluctuation | ±3%RH | ||||||||
| Refrigerant | R134a | ||||||||
| Continuous operation time | Long-duration operation | ||||||||
| Rated Power | 500W | 600W | 800W | 1100W | 1200W | 1400W | 2400W | 2600W | |
| Inner Chamber Dimensions (W×D×H)(cm) |
31X32X46 | 42X40X60 | 50X46X78 | 58X50X97 | 58X54X122 | 70x57x125 | 120x52x129 | 120x70x130 | |
| External Dimensions (W×D×H)(cm) |
47X48X96 | 58X56X110 | 66X62X128 | 74X66X147 | 74X70X172 | 85x88x185 | 135x84x190 | 135x102x191 | |
| Shelves (Standard/Max.) | 2/8 | 3/13 | 3/15 | 3/16 | 3/18 | 4/18 | 6/20 | 6/20 | |
FAQ:
- What is the warranty period?– The product comes with a 1-year warranty covering parts and labor.
- Do you accept customized logo or mark on your product?– Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- What method of payment will you accept?– We accept many ways like T/T or pay pal.
- Are you a manufacturer?– Yes, we are the professional manufacturer set up in 2001, located at Zhengzhou city.
- Can we visit the factory?– Of course, we highly welcome clients come to our factory, it will be our great honor to meet you.
- How can you guarantee the quality?– 100% qualified products before delivery. The clients can inspect the product at our factory.
- When can I get the product quotation?– We will send you a product quotation within 24 hours after receiving your inquiry
