Specifications:
Model: JM-MJP-50L-AC、JM-MJP-100L-AC、JM-MJP-180L-AC、JM-MJP-280L-AC、JM-MJP-380L-AC、JM-MJP-500L-AC、JM-MJP-80L-AC、JM-MJP-1000L-AC
Brand: Junmu
Product Description:
Structural Features:
Outer Casing： Constructed from cold-rolled steel plate substrate with electrostatic baking paint treatment, forming a dense protective layer for high hardness, robustness, and exceptional anti-corrosion capability. Features anti-pinch rounded edges for operational safety and durability.
Working Chamber： Equipped with power sockets and UV sterilization lamps. Made of mirror-polished stainless steel with smooth rounded corners. Quickly detachable shelf brackets allow flexible adjustment and easy cleaning.
Insulation Layer： Insulation protection system between the outer casing and working chamber ensures thermal retention, guaranteeing temperature stability while minimizing ambient impact.
Sealing Technology： High-density synthetic heat-resistant silicone sealing strips prevent heat loss and support long-term high-temperature operation.

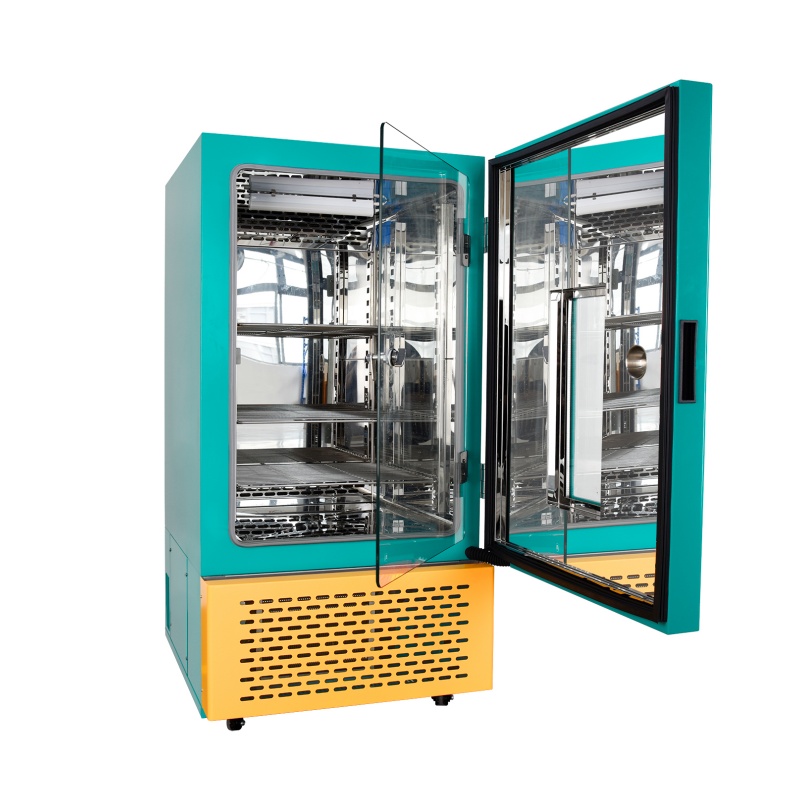

Observation Window： Double-door design with tempered glass observation panes. Opening the outer door allows direct viewing of the chamber without affecting internal temperature. Note: 800L/1000L models feature a double-door design (outer door without observation window).
Temperature Control：Automatic cold/heat control system with high-sensitivity sensors ensures operational stability.
Air Flow System： Forced convection ventilation structure enhances temperature response speed, improves uniformity, and reduces fluctuations.
Control Panel： Microcomputer intelligent LCD display with menu operation, multi-segment programmable control, temperature calibration, and timer functions. High precision with no overshoot.
Safety & Connectivity：Equipped with leakage protectors and RS485 communication interface for computer connectivity, enabling data display, printing, storage, and playback of experimental records.
Technical Date:
| Model | MJP-50L-AC | MJP-100L-AC | MJP-180L-AC | MJP-280L-AC | MJP-380L-AC | MJP-500L-AC | MJP-800L-AC | MJP-1000L-AC |
| Door | Single door | Double door | ||||||
| Power Supply Voltage | AC 220V,50HZ | |||||||
| Temperature Fluctuation | Heating±0.5℃；Refrigeration±1℃ | |||||||
| Temperature Uniformity | ±1℃ | |||||||
| Temperature Resolution | 0.1℃ | |||||||
| Temperature Range | 0～60℃ | |||||||
| Timer Range | 1～9999min | |||||||
| Refrigerant | R134a | |||||||
| Continuous operation time | Long-duration operation | |||||||
| Rated Power | 500W | 600W | 800W | 1100W | 1200W | 1400W | 2400W | 2600W |
| Inner Chamber Dimensions (W×D×H)(cm) |
31X32X46 | 42X40X60 | 50X46X78 | 58X50X97 | 58X54X122 | 70x57x125 | 120x52x129 | 120x70x130 |
| External Dimensions (W×D×H)(cm) |
47X48X96 | 58X56X110 | 66X62X128 | 74X66X147 | 74X70X172 | 85x88x185 | 135x84x190 | 135x102x191 |
| Shelves (Standard/Max.) | 2/8 | 3/13 | 3/15 | 3/16 | 3/18 | 4/18 | 6/20 | 6/20 |
FAQ:
- What is the warranty period?– The product comes with a 1-year warranty covering parts and labor.
- Do you accept customized logo or mark on your product?– Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- What method of payment will you accept?– We accept many ways like T/T or pay pal.
- Are you a manufacturer?– Yes, we are the professional manufacturer set up in 2001, located at Zhengzhou city.
- Can we visit the factory?– Of course, we highly welcome clients come to our factory, it will be our great honor to meet you.
- How can you guarantee the quality?– 100% qualified products before delivery. The clients can inspect the product at our factory.
- When can I get the product quotation?– We will send you a product quotation within 24 hours after receiving your inquiry
