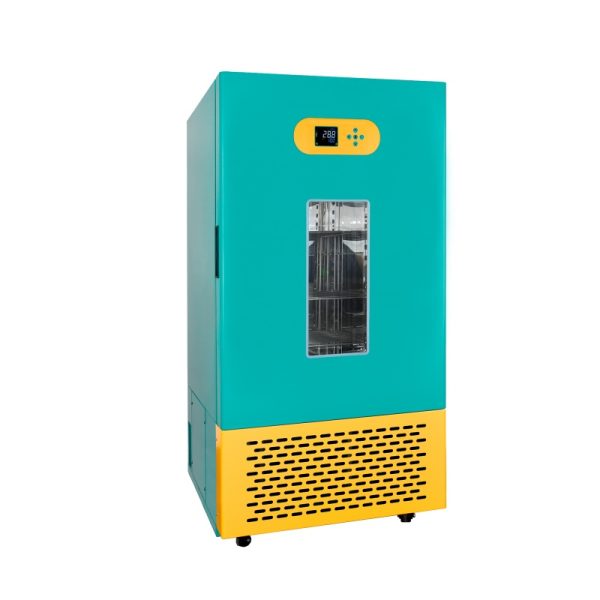

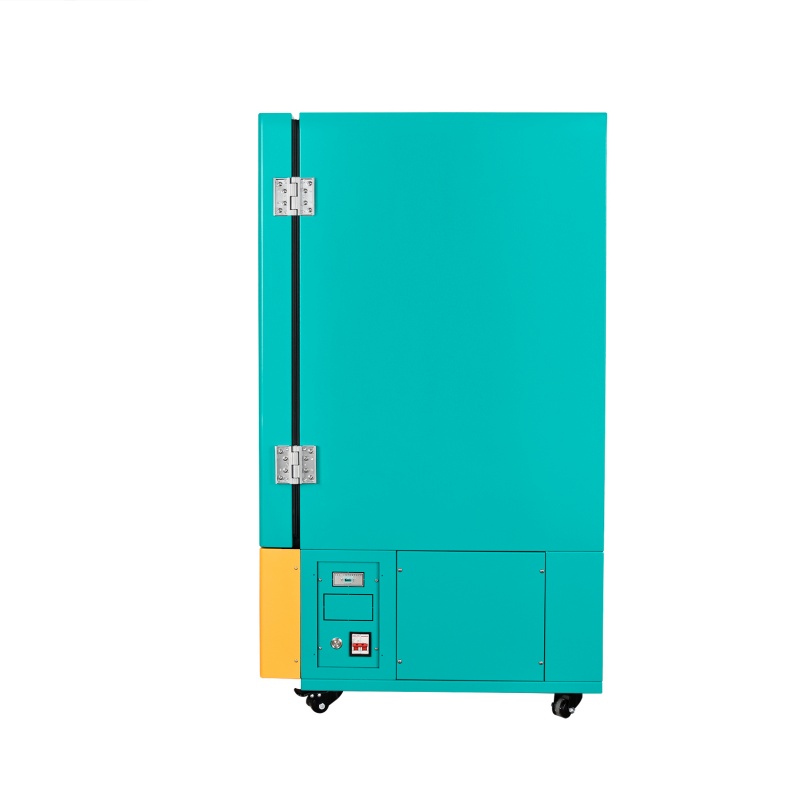

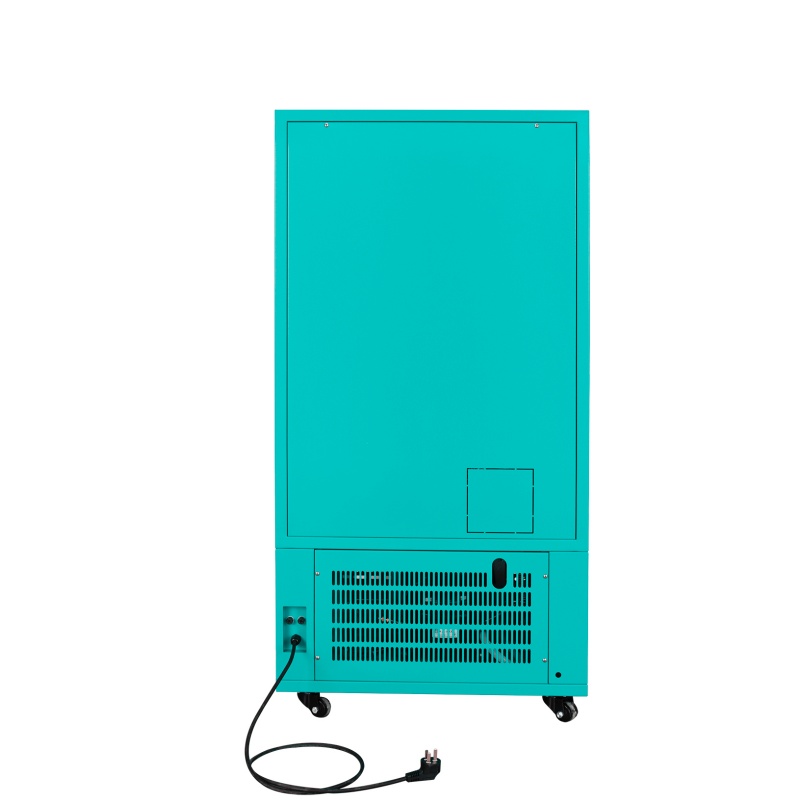

Pharmaceutical Stability Test Chamber(JM-YHH)

Structural Features:​

Outer Casing： Constructed from cold-rolled steel plate substrate with electrostatic baking paint treatment, forming a dense protective layer for high corrosion resistance and durability. Features ​anti-pinch rounded edges for operational safety.

Working Chamber： Equipped with UV sterilization lamps for decontamination.

Made of mirror-polished stainless steel with smooth rounded corners.

Quick-detachable shelf brackets allow flexible height adjustment and easy cleaning.

Insulation Layer： Insulation protection system between casing and chamber ensures thermal retention, guaranteeing temperature stability and minimal ambient impact.

Sealing Technology： High-density synthetic heat-resistant silicone sealing strips prevent heat loss and support long-term high-temperature operation.

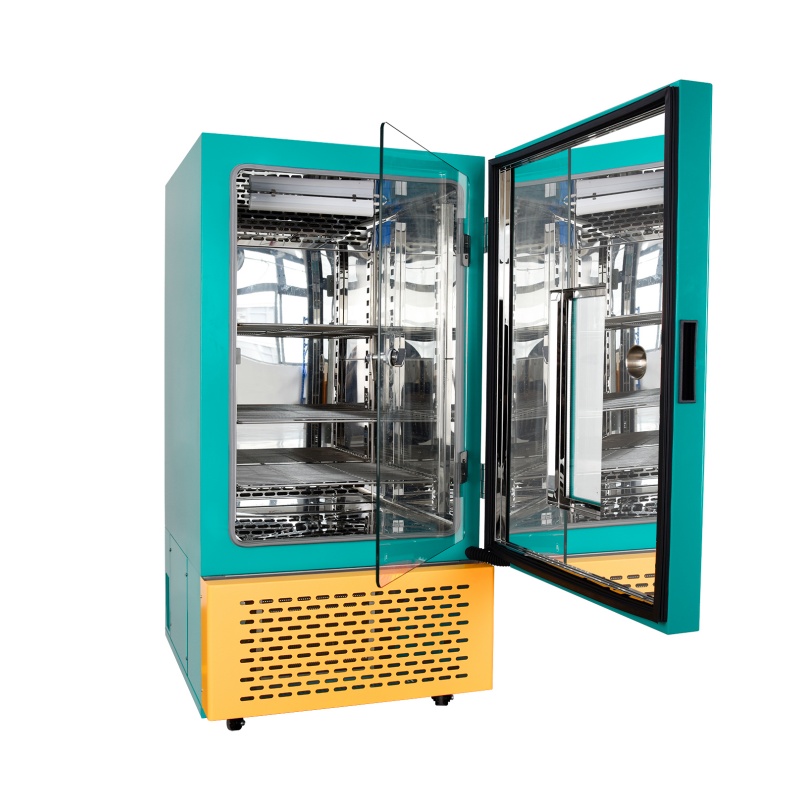

Observation Window： Compound door design with double-layer tempered glass. The outer door can be opened directly to observe samples without affecting internal temperature (Note: 800L/1000L models feature dual doors without observation windows).

Temperature Control： Auto-regulated heating/cooling system with high-sensitivity sensors ensures operational stability.

Air Flow System： Forced convection ventilation structure enhances temperature response speed and uniformity while minimizing fluctuations.

Control Panel： Microcomputer-controlled LCD display with high precision, no overshoot, menu-driven operation, temperature calibration, and timer functions.

Safety & Convenience：Equipped with leakage protectors for electrical safety.

Humidification System：Internal humidification technology using 316 stainless steel heating tubes generates steam for humidity control, ensuring minimal fluctuation and high uniformity.  External 25L water tank supports 15–20 days of continuous operation.

Audit Trail： Built-in dot-matrix printer and USB interface records temperature/humidity parameters at customizable intervals, enabling long-term data storage and playback for compliance with GMP requirements.
