Specifications:
Model: JM-12DV、JM-18DV、JM-24DV
Brand: Junmu
Product Description:
Technical Date:
| Technical Data\MODEL | JM-12DV（12L，φ200×370mm） | JM-18DV（18L，φ250×360mm） | JM-24DV（24L，φ250×470mm） |
|---|---|---|---|
| Sterilizing chamber volume | 12L φ200×370mm |
18L φ250×360mm |
24L φ250×470mm |
| Working pressure | 0.22MPa | 0.22MPa | 0.22MPa |
| Working temperature | 134℃ | 134℃ | 134℃ |
| Temperature adjust range | 105~134℃ | 105~134℃ | 105~134℃ |
| Timer range | 0~99 min | 0~99 min | 0~99 min |
| Heat average | ≤±1℃ | ≤±1℃ | ≤±1℃ |
| Power | AC220V.50Hz / 1.8KW | AC220V.50Hz / 2KW | AC220V.50Hz / 2KW |
| Dimension(mm) | 480×600×400 | 480×680×455 | 480×680×455 |
| Exterior package dimension(mm) | 580×790×580 | 580×790×580 | 580×790×580 |
| G.W/N.W | 48kg / 43 Kg | 56kg / 47kg | 57kg / 53kg |
Product Features:
- Standard Class B with three times vacuum and drying, the remaining temperature of sterilized instrument is less than 0.2%

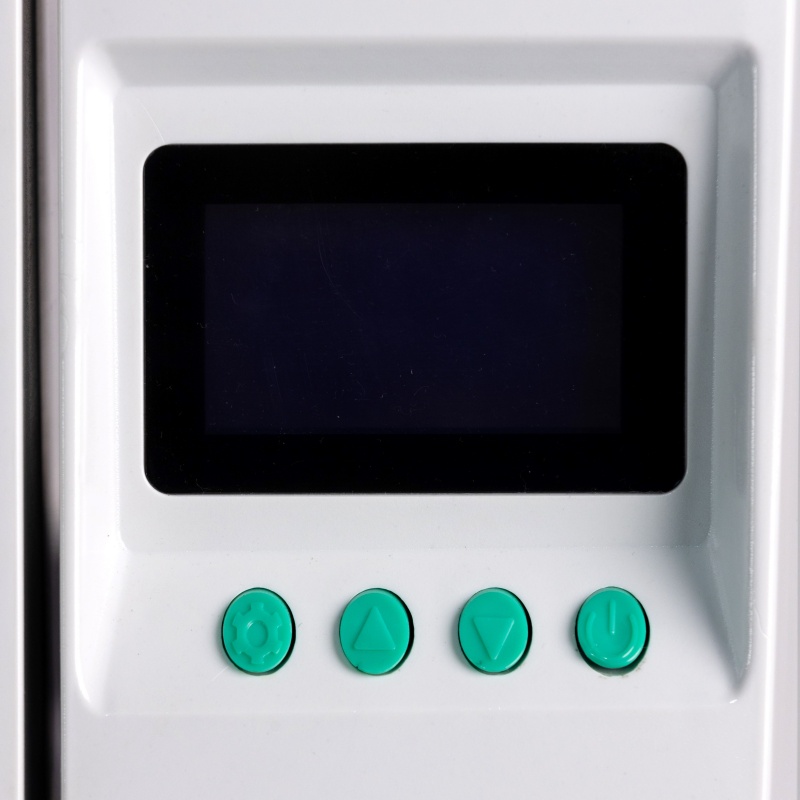

- LCD display working status, touch keys.
- The vacuum data can reach -0.8bar, it fits various instrument, including package, unpackaged, solid, hollow,multi-apertures and inset pipes. It makes sure the instrument can be sterilized completely.
- Fully computer controlled LCD display bright show. The interface is modularized panel for easy operation.
- It is installed with BOWE&DICK which measures the penetration of water steam.
- It has vacuum test which can make sure the ability of vacuum testing.
- Fast and independent steam generator.

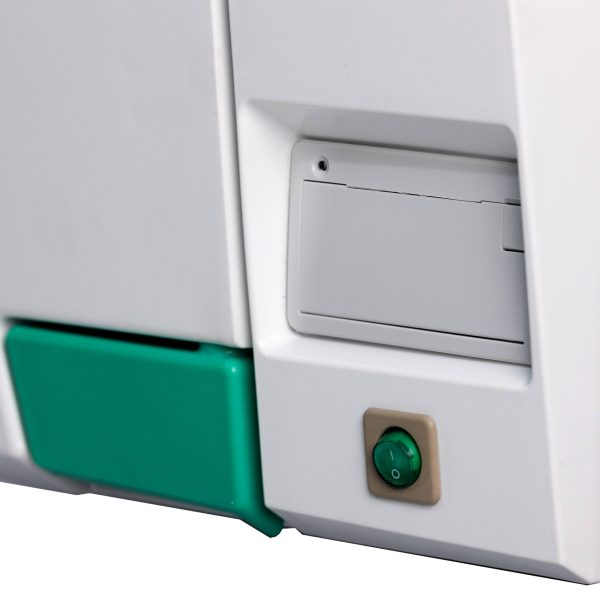

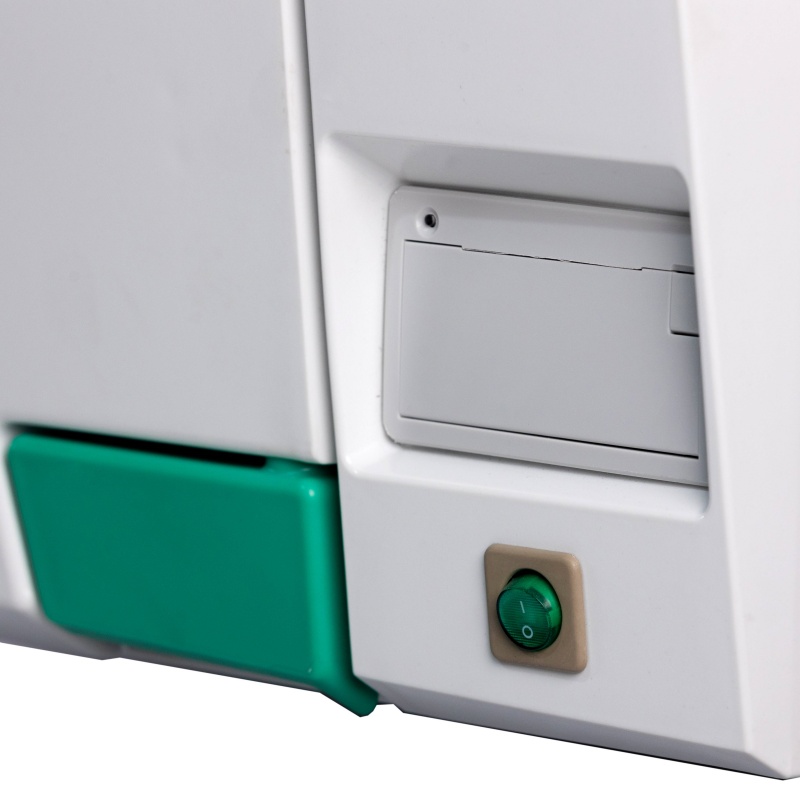

- Built-in mini printer which can record the sterilizing information.
- Equipped with Safety valve, Safety lock door system, Pressure lock system, Pressure or temperature overload protection,Alarm system.
- It inactivates the HIV, HBV, BSE, and bacillus efficiently.
- This product is designed for open water tank, water purification, sewage tank separation, convenient and intuitive.
FAQ:
- What is the warranty period?– The product comes with a 1-year warranty covering parts and labor.
- Do you accept customized logo or mark on your product?– Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- What method of payment will you accept?– We accept many ways like T/T or pay pal.
- Are you a manufacturer?– Yes, we are the professional manufacturer set up in 2001, located at Zhengzhou city.
- Can we visit the factory?– Of course, we highly welcome clients come to our factory, it will be our great honor to meet you.
- How can you guarantee the quality?– 100% qualified products before delivery. The clients can inspect the product at our factory.
- When can I get the product quotation?– We will send you a product quotation within 24 hours after receiving your inquiry
