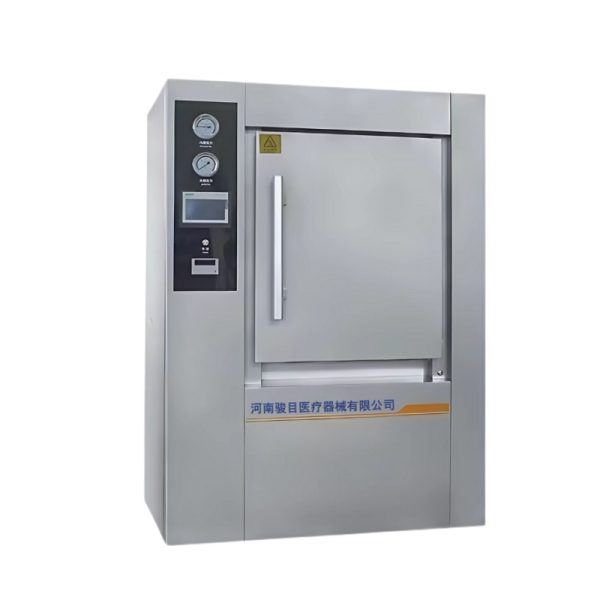

WG Series Pulse Vacuum Autoclave

WG Series Pulse Vacuum Autoclave

WG Series Pulse Vacuum Autoclave use saturated steam as the sterilizing medium, by relying on the physical property that the saturated steam can release a large amount of latent heat and moisture during condensation, it renders items to be sterilized in a highly heated and humid state. After a period of heat preservation.the purpose of sterilization is achieved. The effect of cold air on temperature is eliminated by means of pulsating vacuum exhaust, finally the items drying is realized by the vacuum dehumidification combined with jacket. WG series pulsating vacuum sterilizers are mainly used in central sterile supply department, third-party disinfecting supply centers and operating rooms, where medical devices, dressings, rubber, lumen devices, implantable devices, and liquids are sterilized.

Category: Brand:

Specifications:

Model: JM-WG-0.25、JM-WG-0.36、JM-WG-0.6、JM-WG-0.8、JM-WG-1.2、JM-WG-1.5、JM-WG-2.0、JM-WG-2.5、JM-WG-3.0

Brand: Junmu

Product Description:

WG Series Pulse Vacuum Autoclave

Product Features:

Body of the sterilizer:

  • Designing, manufacturing and inspection are performed according to GB/T 150″pressure Vessel”, GB 8599″Technical Requirements for Large Steam Sterilizer Automatic Control Type” and TSG21-2016 “Stationary Pressure Vessel Safety Technical Supervision Regulations”.
  • The main structure is of a rectangular cross section with European ring-type jacket with reinforcing ribs. The doors are pneumatically sealed, and the two doors are interlocked, which fully meets the specific requirements.
  • The materials that come into contact with steam such as the interior liner and door panels are all S30408 stainless steel. with a designed service life up to 10 years and 20,000 sterilization cycles ( 316L, stainless steel is the optional material with designed service life of 15 year and 30,000 sterilization cycles).The gear rack and the teach are made of S30408 stainless steel, and the jacket is made of high-quality Q245R material specific for pressure vessels, with S30408 optional.
  • With standard GMP authentication interface.

Piping System:

  • 304 stainless steel sanitary pipes, with clamp joints. Adopting GEMU angle seat pneumatic valves imported from Germany, solenoid valves supplied by Taiwan AirTAC and directly connected water ring vacuum pump imported from German SPECK.
  •  (Optional) Smart automatic drainage system, water-conservative noise reduction system and pipeline insulation treatment.

Controlling System:

  • Adopting imported Siemens PLC and colorful touch screens on the operator’ side; the printer prints the process data of each stage in real time manner; with a variety of safety and alarming systems.
  • Equipped with a communication interface connected with the quality tracing system of the disinfecting supply center. Intelligent maintenance system,with remote monitoring and maintenance modules (optional).
  • Double pulsation processes more thoroughly remove the interior air,improving fatigue life of equipment, with excellent drying performance.

Technical Date:

Model Size of Liner – W × H(mm) Size of Liner – Depth(mm) Volume (L) Overall Size – L × W × H(mm) Weight (Kg) Steam Consumption (Kg/C) Tap Water Consumption (Kg/C) Power Supply Power
WG-0.25 550×550 850 255 1250×1280×1850 750 18 120 380V, 50HZ 2KW + 23KW
WG-0.36 610×610 1000 360 1300×1350×1850 850 22 180 380V, 50HZ 2KW + 30KW
WG-0.6 610×910 1200 600 1500×1440×1960 1250 35 320 380V, 50HZ 3KW + 36KW
WG-0.8 610×910 1500 800 1800×1440×1960 1350 47 400 380V, 50HZ 3.5KW + 48KW
WG-1.2 680×1180 1500 1200 1800×1480×2000 1650 65 600 380V, 50HZ 3.5KW
WG-1.5 680×1180 1850 1500 2140×1480×2000 1850 80 750 380V, 50HZ 4KW
WG-2.0 900×1390 1620 2000 1970×1750×2200 2300 106 1000 380V, 50HZ 4.5KW
WG-2.5 900×1390 2050 2500 2350×1750×2200 2700 132 1250 380V, 50HZ 6KW
WG-3.0 900×1390 2400 3000 2700×1750×2200 3500 132 1250 380V, 50HZ 8KW

FAQ:

  • What is the warranty period?​– The product comes with a 1-year warranty covering parts and labor.​
  • Do you accept customized logo or mark on your product?​– Yes. Please inform us formally before our production and confirm the design firstly based on our sample.​
  • What method of payment will you accept?​– We accept many ways like T/T or pay pal.​
  • Are you a manufacturer?​– Yes, we are the professional manufacturer set up in 2001, located at Zhengzhou city.​
  • Can we visit the factory?​– Of course, we highly welcome clients come to our factory, it will be our great honor to meet you.​
  • How can you guarantee the quality?​– 100% qualified products before delivery. The clients can inspect the product at our factory.​
  • When can I get the product quotation?​– We will send you a product quotation within 24 hours after receiving your inquiry
